ReplaceObjects

Object replacement tools for Lightwave 3D.

ReplaceObjects

2001 - 2002

ReplaceObjects is a plug-in for Lightwave 6.0 or greater. It allows you to replace multiple objects with multiple other objects. The replacement can be from a random selection of objects and weighted for more control, and the original object's name and path can be stored as scene tags so you can return to the original at any time. Two plug-ins are included, Replace Objects and Replace With Original Object. This plug-in requires Lightwave 6.0 or greater.

Click here to download ReplaceObjects (208 KB)


Installation

To install ReplaceObjects, just follow these steps:

  • If any copies of Layout are running, quit them now.
  • Create a new directory in your Lightwave Plugins directory called TMPro and copy ReplaceObjects.p into it.
  • Load Layout
  • Select Add Plug-ins.
  • Find and add ReplaceObjects.p. Layout should report that two plug-ins have been added.
  • Quit Layout. This will update your Lightwave config and ensure that everything works properly.
  • The next time you run Layout, you can launch the ReplaceObjects plug-ins from the Generics pop-up in the Plug-in Options Panel, or assign them to keys or buttons on the interface with Configure Keys and Configure Menus. Please refer to your Lightwave documentation for more information. The plug-ins will be the prefixed with TM_P under the Plugins heading of the Configure Keys and Configure Menus panels.



Replace Objects

Replace Objects allows you to replace any or all objects in the scene with any other objects. These replacements are randomly selected from the swap list based on each's weight. You use the plug-in by selecting the objects you want to replace, activating the Replace Objects, selecting any number of swap objects and their weights, and hitting OK to replace the selected objects with the swaps.

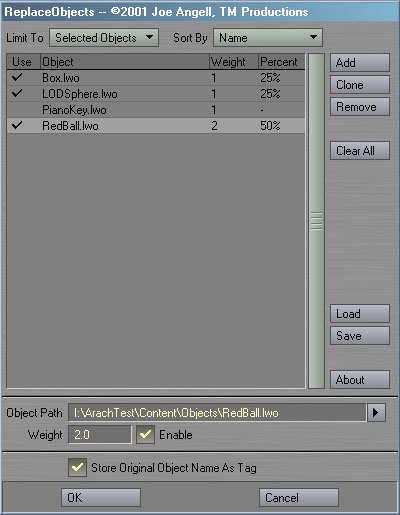

To use Replace Objects, you must first select the objects you want to replace. Once you have some selected, activating the plug-in will open an interface like the one above.


The Limit To pop-up determines if all objects will be replaced, or only the selected objects.

The core of the plug-in is the Swap List. This contains a list of all the swap objects you have entered. The first column of the list shows a check if the item is enabled, and you can click in this column to change this state. The second column is the filename of the swap object. The third column displays the weight of this swap object. The final column shows the probability of this object being chosen as a replacement. Adding together all the values in this column will total 100%. Disabled items will not contribute to this total, and will display a dash instead.


The Sort By pop-up allows you to sort the swap list alphabetically by object name or by weight.

Add will add a new swap object to the list. Clone will duplicate the selected swap object. Remove will remove a swap object, and Clear All will remove all swap objects and clear the list.

The Object Path field contains the path of the swap object. You can click the button to the right of the field to open a file requester to select the object. If no path is entered, the Swap List will display (original object), meaning that if this swap object is chosen, the object won't be replaced.

The Weight field allows you to adjust the weight of the selected swap object. By default, all objects have a weight of 1.0, which means they all have an equal chance of being chosen as a replacement object. An object with a weight of 2.0 has twice as much chance of being chosen as an object with a 1.0 weight. You can see these weights as a percentage in the Swap List.

The Enable checkbox allows you to enable or disable a particular item. If an item is disabled, it will act as if it wasn't there, allowing you to temporarilly ignore unessesary items.

Store Original Object Name As Tag will keep a copy of the original object name as a scene tag. Scene tags can be viewed using the Comments Generic plug-in include with Lightwave. Storing the original object names allows you to use the Replace With Original Object plug-in to reload the original item. The tag starts with the keyword "OriginalItem", then a 0 if it was a null or a 1 if it was an object, and finally the path to the object, or the original name of the null object. If this tag already exists for this object, it will be replaced with the new tag. If this option is left unchecked, then no tags will be modified or created.

Save can be used to store the current swap list to disk for later use as an .RPS file. You can load these settings back in with the Load button.

About, as you'd expect, will pop up some information about this plug-in.

Once you have all the options set up, OK will begin replacing objects. A progress bar will show you how the replacement is going. If you don't want to perform the replacement, you can hit Cancel instead.


Replace with Original Object

This plug-in reverses the effects of Nullify and Replace Objects when Store Original Object Name As Tag was enabled. It replaces each selected object with the object or null object specified by the "OriginalItem" tag. The existing tag will then be replaced with the original name of the item we're replacing, so you can call this over and over again to swap between the original item and the replacement. If the tag doesn't exist, then this will do nothing.


Revision History

  • 04-22-01
    First public release
